ZR-C65直立缝屋面板专为满足建筑师构思的灵活性而设计，可在各种建筑中广泛使用。这些面板适用于结构复杂的屋面，并可与其他建筑元素完美融合。
ZR-C65 panels are engineered for the design flexibility architects require and can be used on a wide specturm of building. These panels can accommodate complex roof requirements, allowing smooth transitions between other building elements.

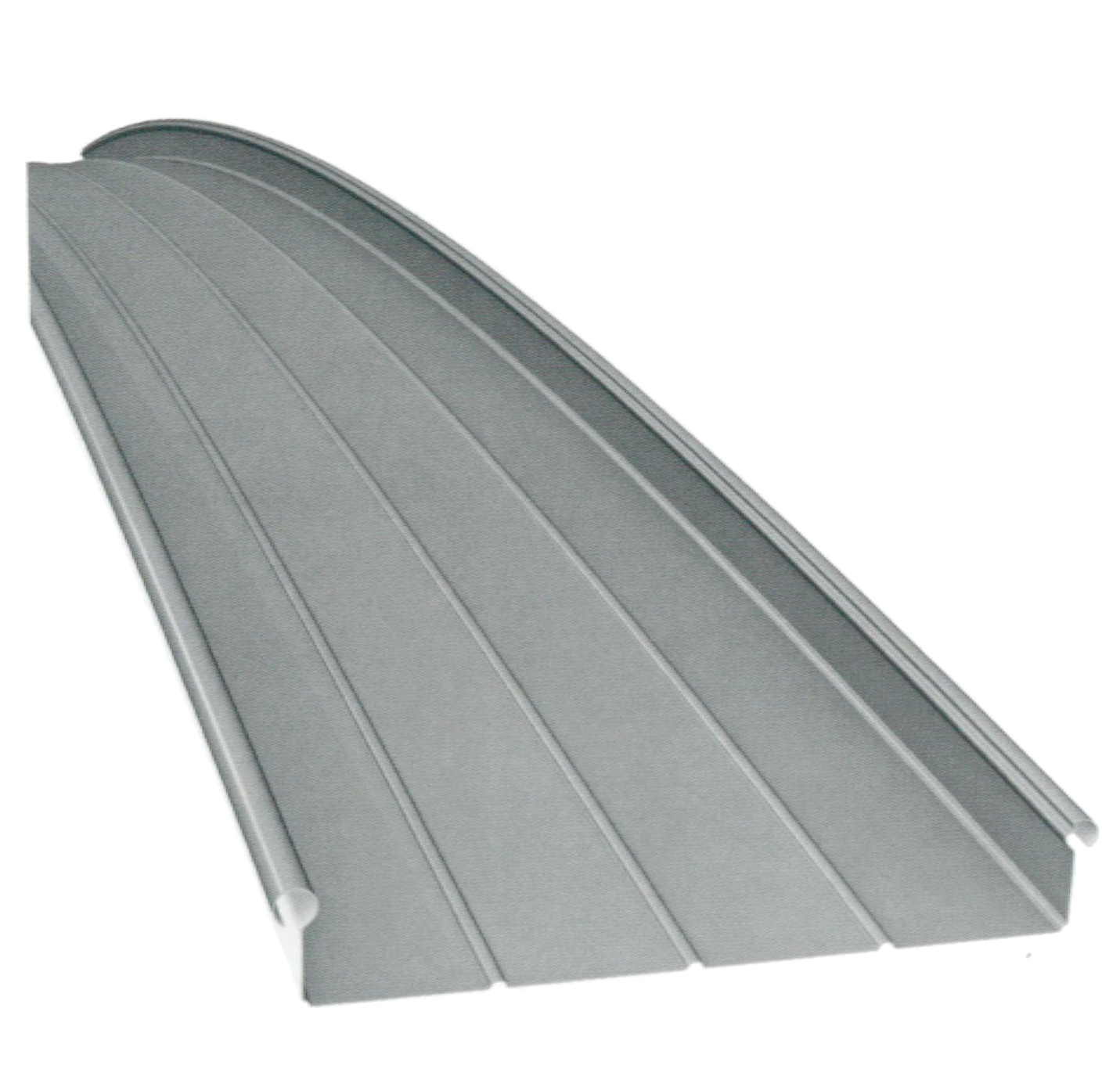

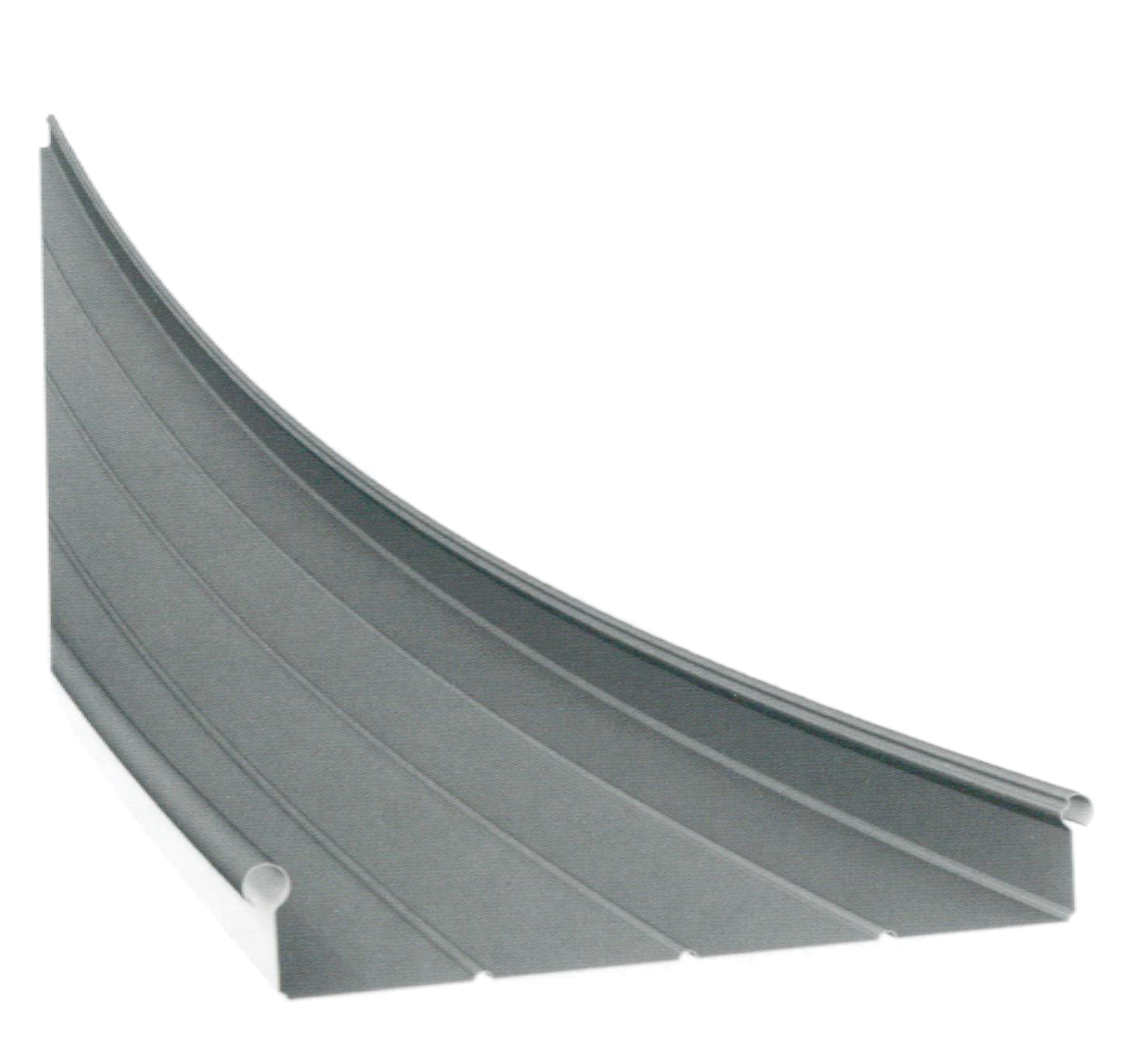

ZR-C65：直板/straight 弧形ZR-C65：正弯/convex 弧形ZR- C65：反弯/concave

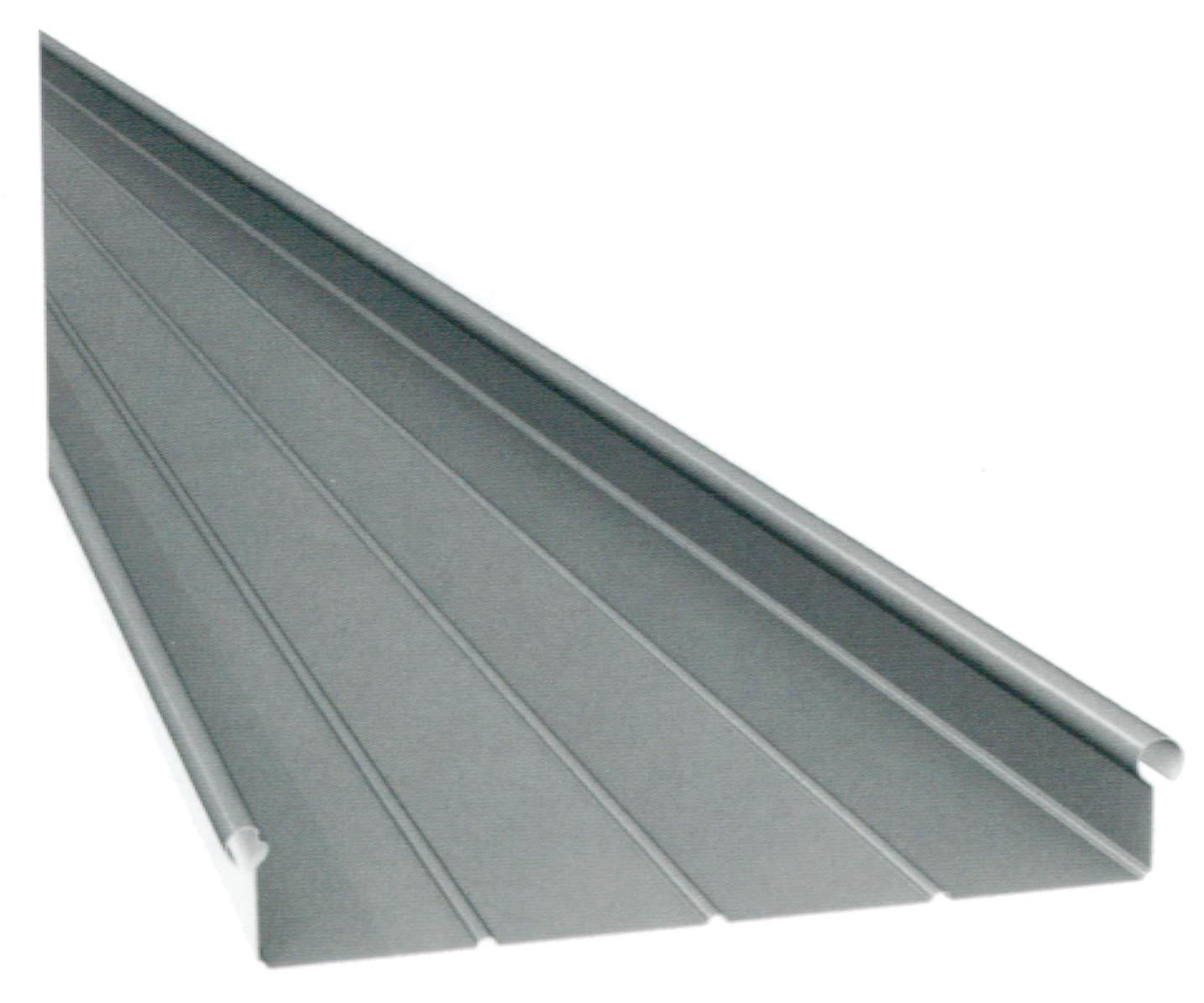

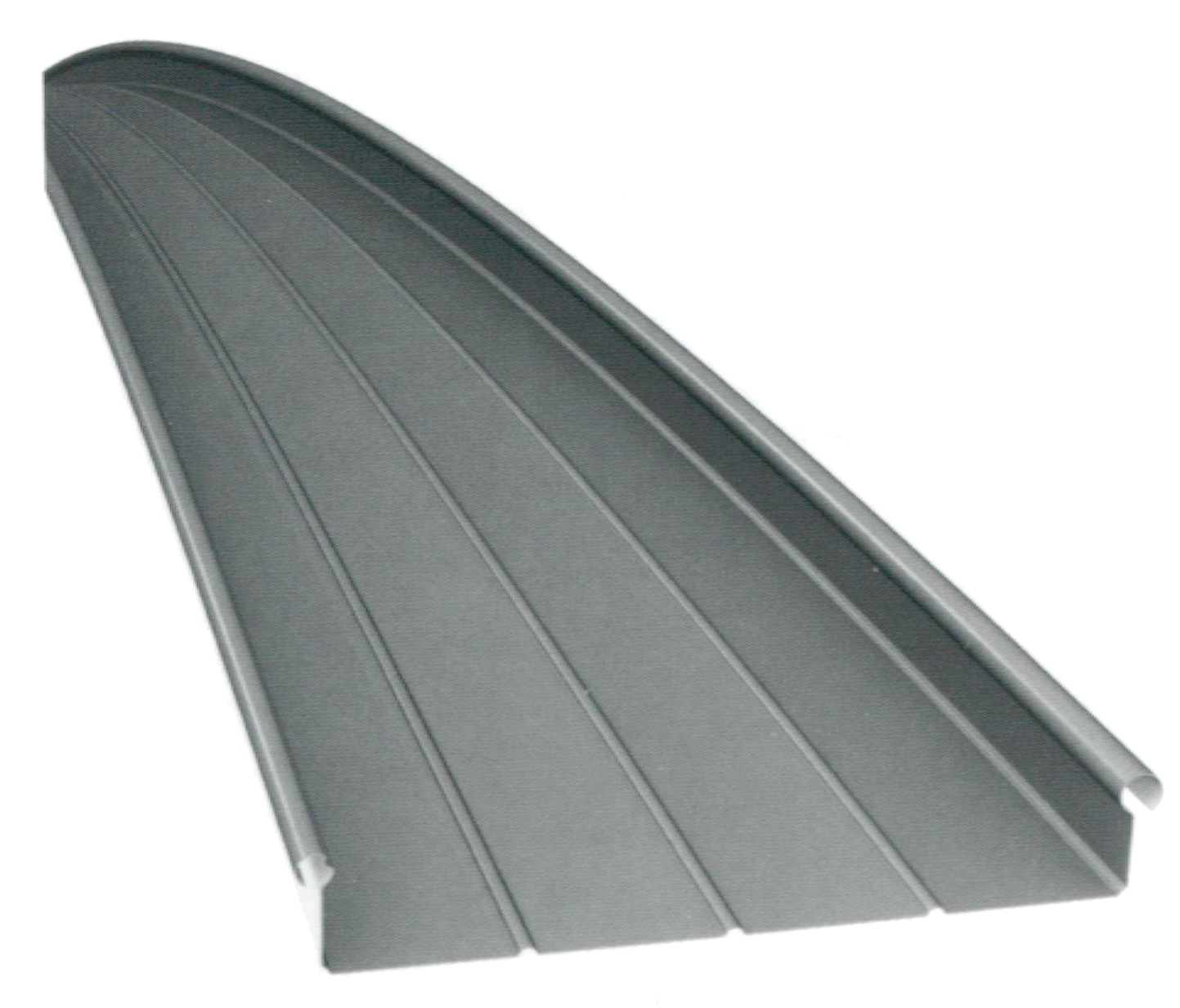

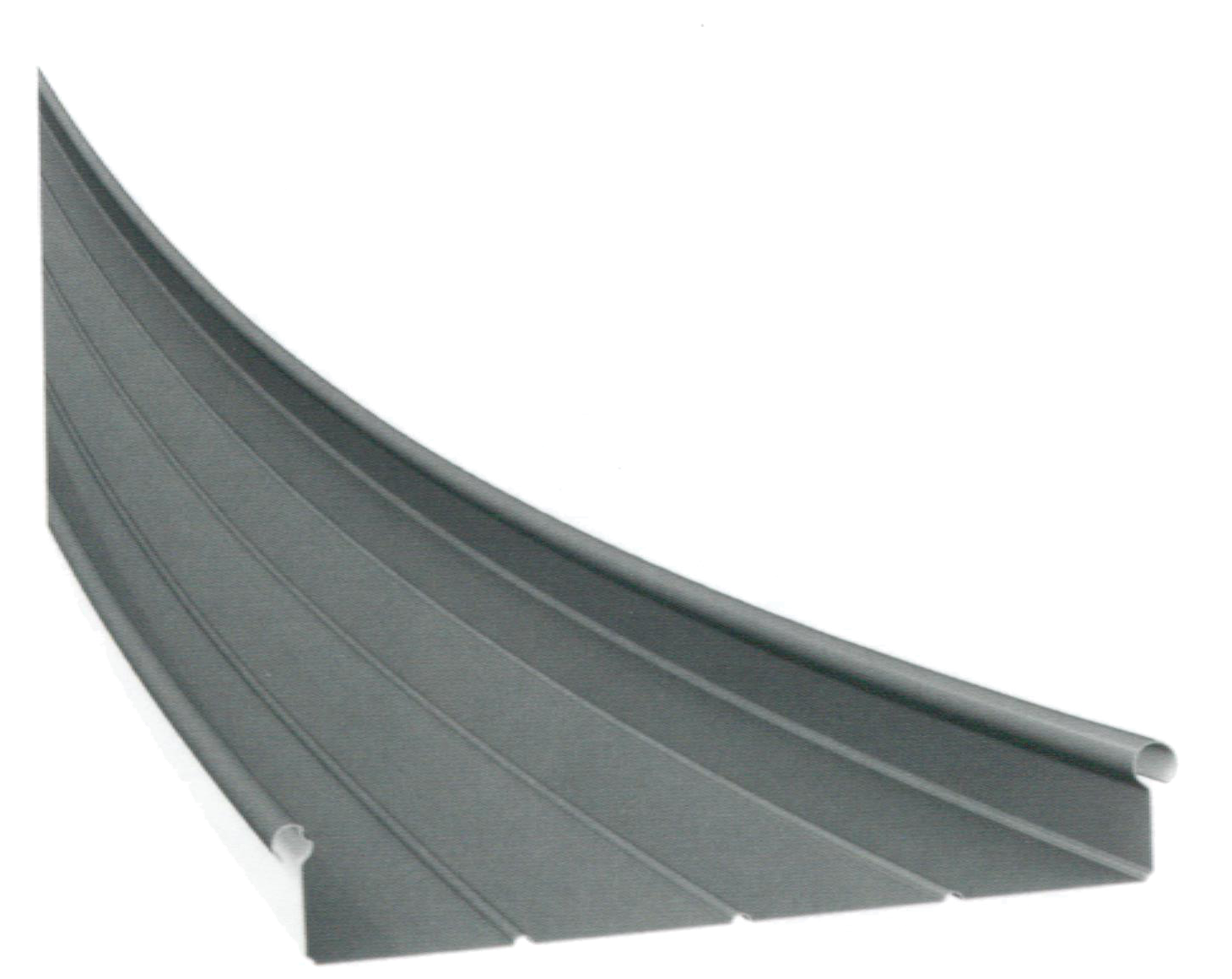

扇形ZR-C65：直板/straight 扇形ZR-C65：正弯/convex 扇形ZR-C65：反弯/concave
材质
● G90镀锌基材,铝镁锰合金，钛锌基材，铜基材，阳极氧化基材
厚度
● 0.6-1.2毫米，
面板宽度
● 标准400毫米，300毫米至500毫米可选
面板长度
● 出厂长度13.7米
●现场生产长度不限
面板高度
● 65毫米标准肋高
坡度
● 无搭接时最小坡度2%
涂层
● PVDF涂层系统
检测
● 气密性等级：4 级
● 水密性等级：5 级（2.0 kPa)
● 抗风压等级：5 级
SUBSRATES
● G90 Galvanized base material,Aluminium,anodizing,zinc,copper
PANEL THICKNESS
● 0.6mm-1.2mm
PANEL WIDTH
● 400mm, 300-500mm can choose
PANEL LENGTH
● Factory-formed panel lengths to 13.7m
● No limited requirements for field production
PANEL HEIGHT
● 65mm nominal rib height
SLOPE
● 2% minimum
COATINGS
● PVDF
TESTING
● Air Permeability classification: Class 4
● Watertightness classification: Class 5(2.0 KPa)
● Resistance to wind load classification: Class 5
