Concept系列单层板材将品种多样的压型板与隐藏式紧固螺钉结合起来，围绕唯一的主题——造就活力四射、富有不对称美感的建筑形式。
Concept系列板材适用于有隔热要求或无隔热要求的现场复合工程，如有隔热要求时，该系统可与钢内衬板综合使用。

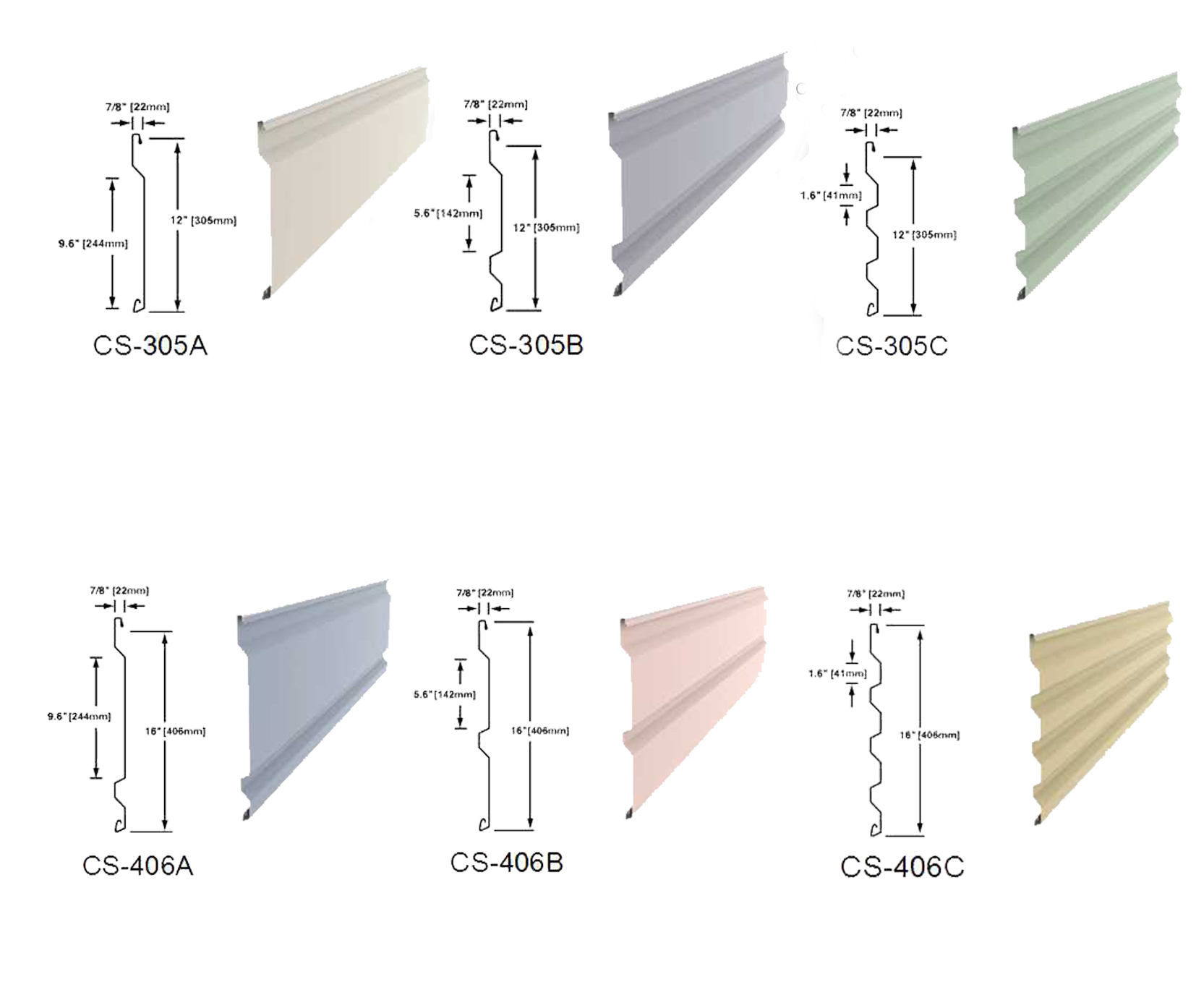

Concept Series single-skin panels make inspiring custom aesthetics possible with a combination of concealed fasteners and a common lock joint that can be interchanged. Featuring a wide range of profiles, Concept Series panels work well for both insulated and uninsulated walls.
单板可以自由搭配，水平或竖直安装均可。
Panels can be mixed freely and installed horizontally or vertically.
材质
● 标准厚度0.60mm-1.2mm Z275镀锌钢板
● 镀锌钢板，钢板，铝板，锌板，不锈钢板可选
● 光滑或压花饰面可选
板材长度
● 请向斯迪莱特公司咨询
涂层及颜色
● 可定制
特点
● 板材紧固螺钉不暴露在外面
● 通用的内扣连接，板材可以自由交换
● 可以满足不同程度的保温需求
● 经济高效，外表整洁大方，连续美观
● Standard 0.60mm-1.2mm Z275 galvanized steel
● Optional galvanized steel, steel, aluminum, zinc or stainless steel
● Smooth or embossed surface texture
PANEL LENGTH
● Please consult Steelite
COATIONGS & COLORS
● Custom-made
FEATURES
● Concealed clips and fasteners
● Common lock joint allows panels to be mixed freely for custom-like aesthetics
● Insulated to meet many levels of thermal protection
● High performance and highly cost-effective
